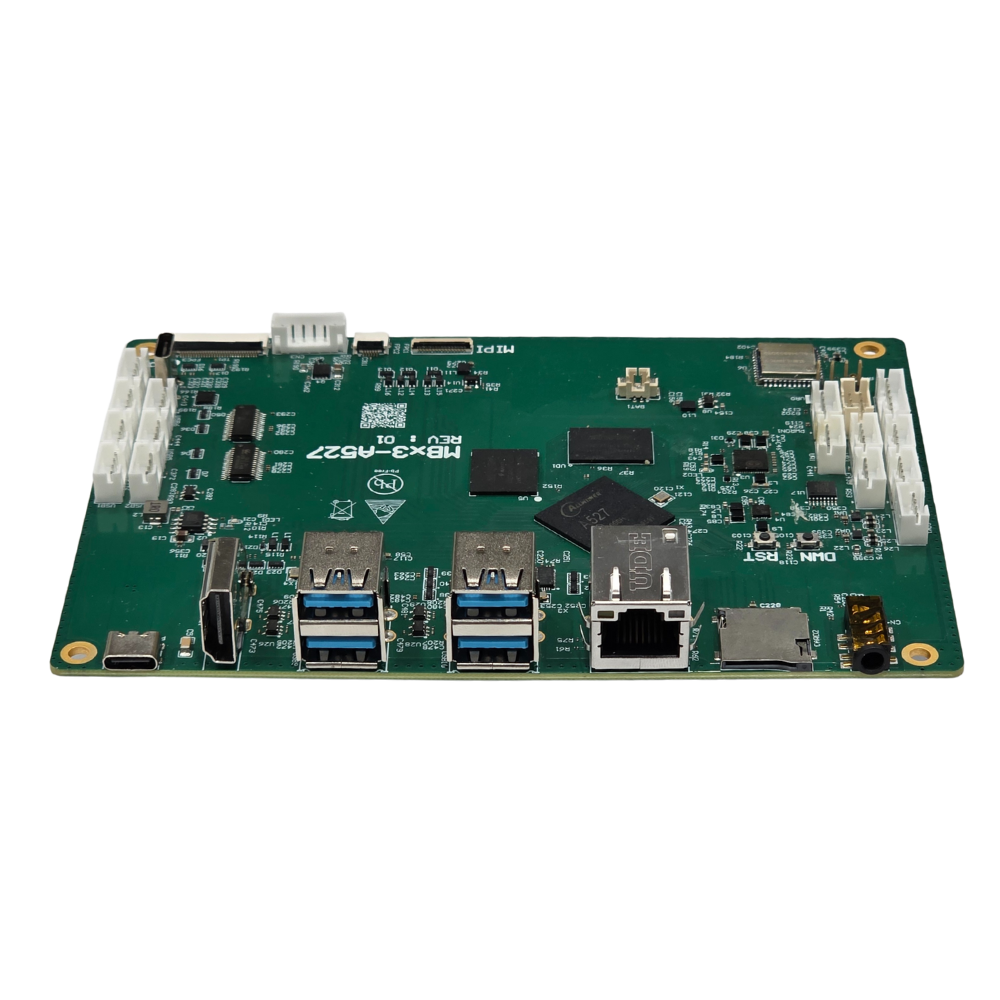

MBx3-A527_Front

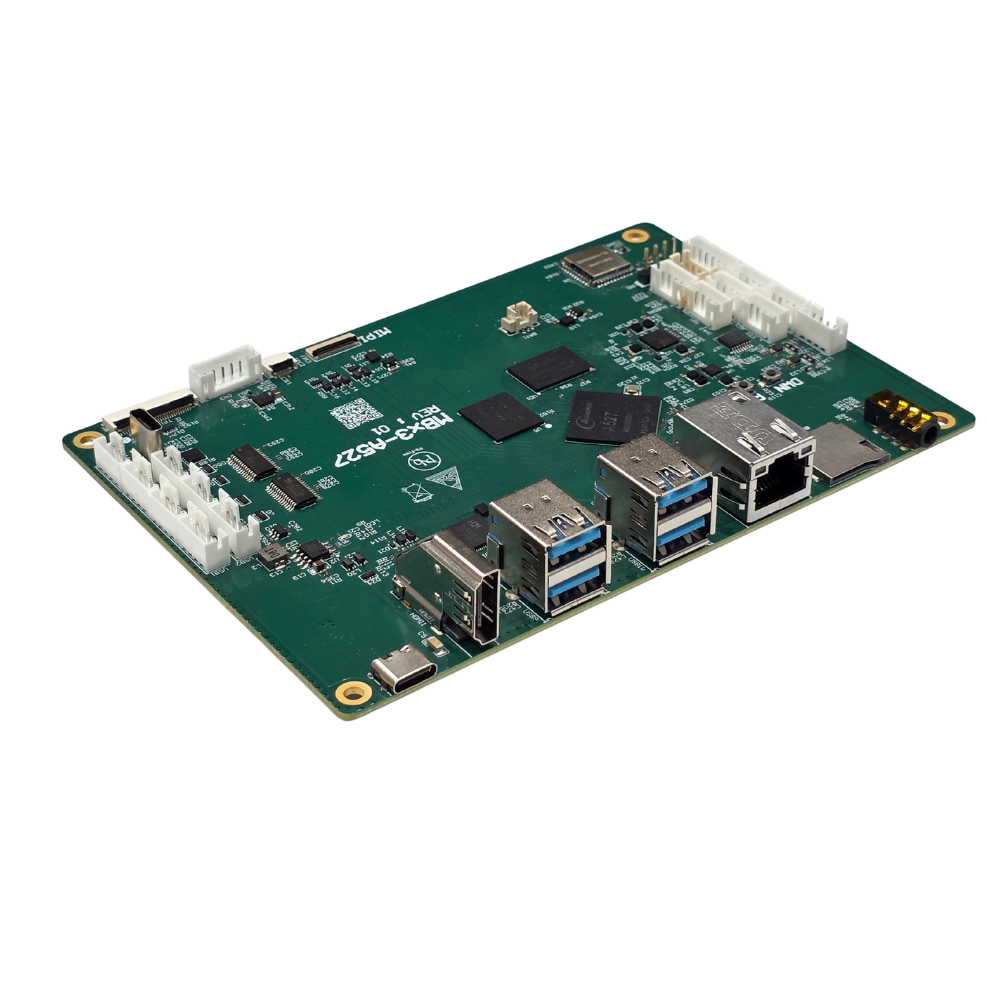

MBx3-A527_R_Side

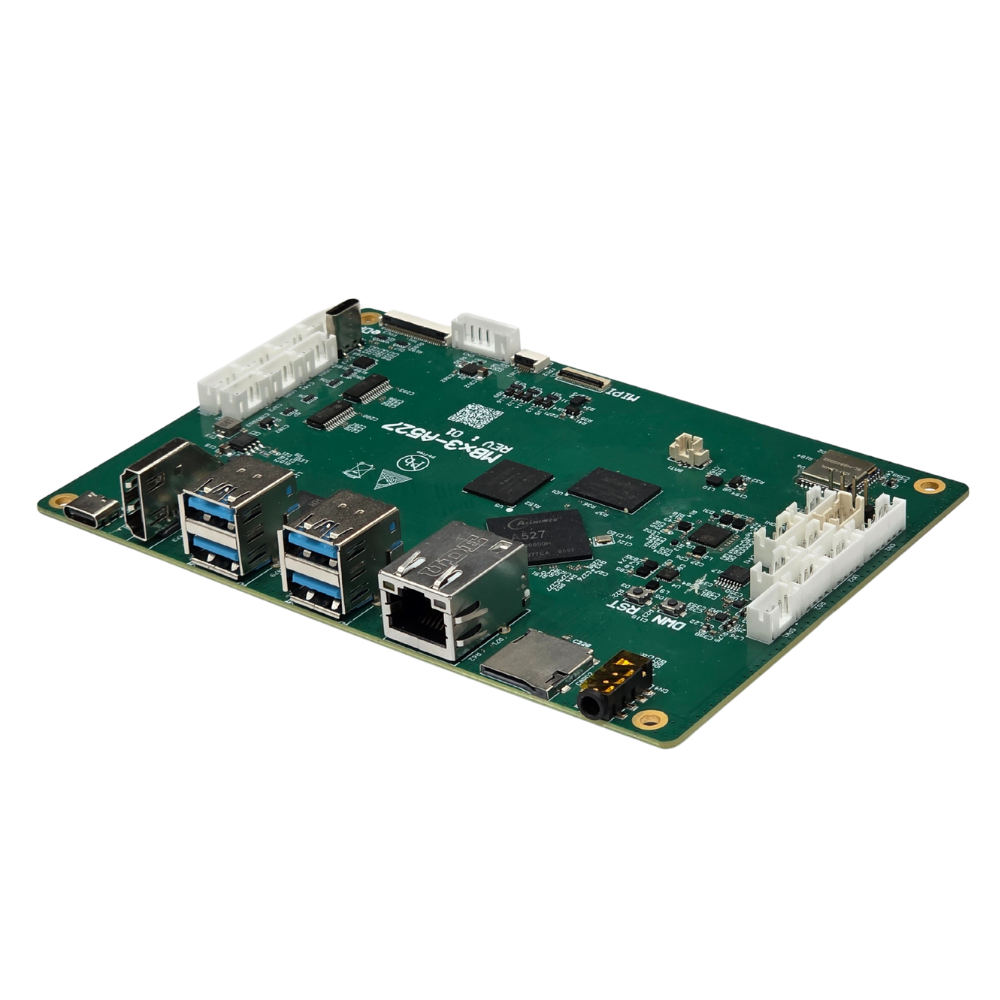

MBx3-A527_L_Side

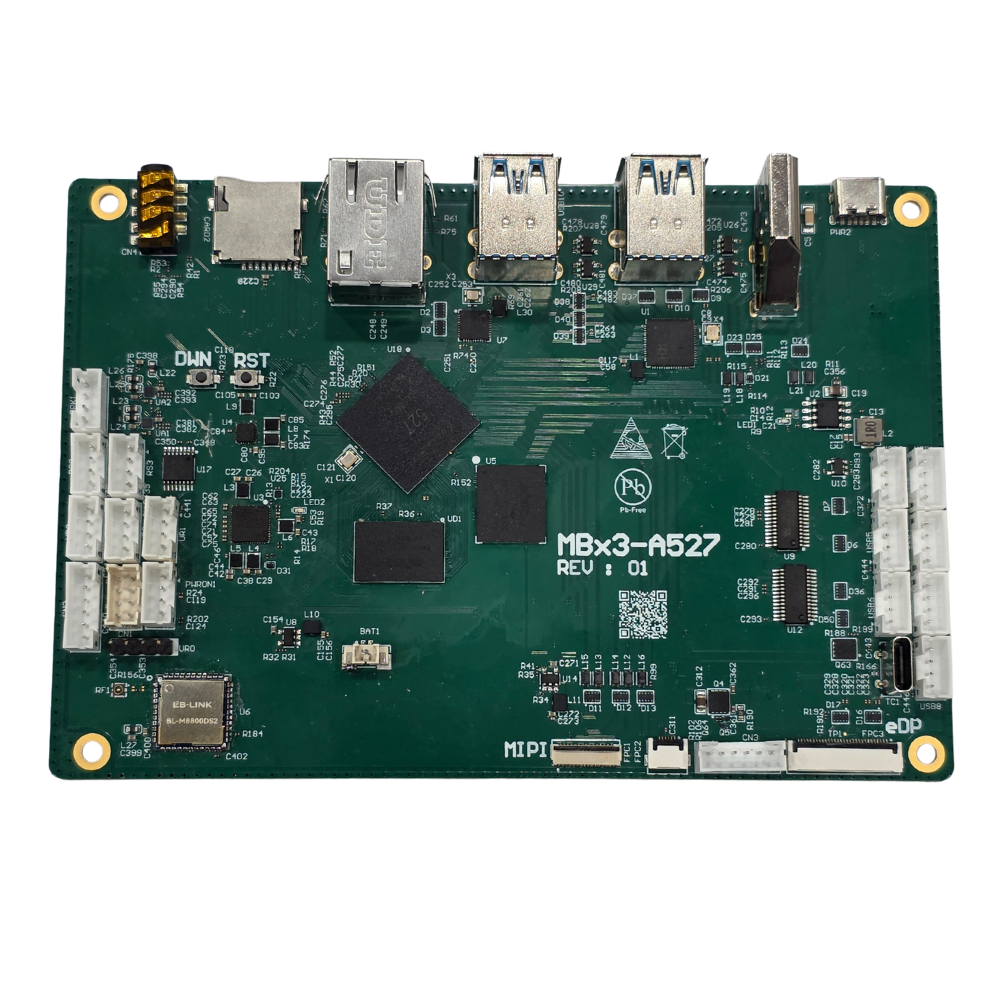

MBx3-A527_Top

MBx3-A527

Purpose-Built Embedded Board with Octa Core processor, Balancing Performance and Cost

Features

  • High-performance Octa-Core Cortex-A55 SoC processor, up to 2.0GHz
  • Built-in Integrated ARM G57 MC01 GPU for High performance multimedia processing with low power consumption
  • 4GB LPDDR4 Memory and 32GB eMMC onboard design
  • Comprehensive connectivity: 1x Gigabit Ethernet and Wi-Fi6 +BT5.4 for option
  • Flexible Media output for selection: HDMI, eDP, MIPI-DSI, support dual-screen output simultaneously
  • Rich IO for usage: 11 x USB, 5x Serial Port, 1x 1W stereo Amp 4Ω, 1x 3.5mm Audio Jack
  • Support USB Type-C PD, 9V/12V/15V
  • Support Android 15 and -Debian & Ubuntu
Datasheet download
Product Overview
Specification

MBx3-A527 is a 3.5 inch cost-effective and streamlined embedded board powered by an Octa-core ARM Cortex-A55 processor up to 2.0GHz, equipped with 4GB LPDDR4 memory and 32GB eMMC storage. It supports Android 15 and Linux, delivering high efficiency with low power consumption to meet diverse embedded application needs. The board features 11 USB ports (4x Type-A + 7x headers) and 5 Serial Ports, enabling seamless integration with peripherals such as barcode scanners, receipt printers, sensors, and control modules. With Type-C PD 9–15V power input and streamlined display outputs including MIPI DSI, HDMI, and eDP, it is well-suited for single-screen or basic dual-display solutions. MBx3-A527 is purpose-built for budget-friendly industrial control, HMI panels, retail self-service terminals, and interactive information kiosks, where simplified display requirements and easy peripheral integration are essential. It offers reliable performance, simplified system design, and outstanding cost-effectiveness, making it an ideal choice for lightweight intelligent devices.

Processor 8x ARM Cortex-A55 up to 2.0GHz
RAM Onboard LPDDR4 4GB
Storage 32GB eMMC (Option to 64GB/128GB)
Graphics For internal LCD: MIPI-DSI up to 1920x1080; eDP up to 1920x 1080;
For external Display: HDMI up to 1920x 1080
Display MIPI DSI, eDP, HDMI, Option 3 to 2
Touch Support via I2C signal
WLAN WiFi 6+ BT 5.4 for Option
Display IO Port 1x HDMI
Ethernet 1x RJ45 w/ LEDs for GbE LAN
USB Port 4x USB 3.0 Type-A
Audio Port 1x 3.5mm Audio Jack
Power Input 1x USB Type-C PD, 9V/12V/15V (>20W)
Expansion 1x TF Card Slot
RTC Support via 1x PH 1.25mm
Internal I/O (Onboard) 7x USB 2.0 (PH 2.0mm)
2x RS232 (PH 2.0mm), 3x TTL UART (PH 2.0mm, 4P)
1x MIPI DSI, 1x eDP
1x 1W speaker stereo Amp 4Ω
1x 6-Pin Connector (PH 2.0mm)/1 x 6-Pin FFC Connector, P=0.5mm for Touch
Other 1x Type-C for ADB; 1x Power Key/LED conn. ( PH 2.0mm, 4P) ;
1x Reset KEY/GPIO ( PH 2.0mm, 4P); 1x SPI Conn. (PH2.0mm, 6P);
1x RST Button, 1x DWN Button
Power Input 1x USB Type-C PD, 9V/12V/15V (>20W)
Dimension 148.2x 101.6mm
Operating Temperature -10°C ~ 70°C ( 0% to 90% RH, non-condensing)
Storage Temperature -40°C ~ 85°C
Operating System Android 15, Linux-Debian & Ubuntu
